Cast stone molds. How Critical Quality Molds Are.

Cast stone molds & how critical quality molds are because they are the core of any precast manufacturing process. Every piece starts with a mold, a quality mold is the key. The choice of how both are made the mold and the original model, cannot be stressed enough.

Cast Stone Molds. Step 1. The Journey Begins.

Step 1. From the plans to designs, including many assemblies. Each mold shop drawing is prepared based upon the signed contract & specified profiles or pieces and the quantities that are required.

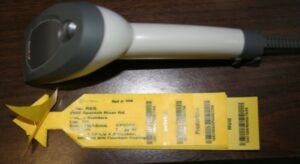

Attached to them are the correct number of custom production & tracking tags in an appropriate bag. These have barcodes on them to track progress throughout the manufacturing, scanners are available in all departments. Including delivery and installation processes.

As an Amazon Associate, I earn from qualifying purchases

I/We promote transparency. This post or site may contain affiliate links. This means only if you make a purchase through these links, not just by clicking, I/we may earn a small commission at no extra cost to you.

Cast Stone Molds: Step 2.

The shop drawings are then reviewed by the mold shop foreman. He first checks if it is a standard piece. If so he asks one of his staff to go and fetch the molds from their appropriate storage area.

Next, the molds are checked for any defects and repairs are made or he may request new mold(s). His next task is to see if the shop drawing called for any stop ends to create exact lengths. Or left or right return pieces. All or any of these could be required for any cast stone creation.

After the appropriate accessories required were made for the mold or taken from stock. The mold was then scanned as it was completed and moved to production.

The biggest part of the mold shop foreman’s responsibility is next in the process. If there are no existing molds in stock. He has to decide which medium to use for the new mold. First, he will consider the type of finish required. Because if it is a normal (for us) finish he has more choices, some of which can produce rapid progress. He will also consider if it is to be a temporary mold. And how quickly it is needed, the number of pieces required. And the available space in production to pour the pieces.

He has a choice of the following main options for the molds. There are others which can be used in extreme emergencies. They are not covered here.

Basic Moldshop Materials

• Liquid Silicone
• Eurothane rubber
• Faced Plywood
• Masonite
• Polystyrene blocks
• Plaster for molding
• Polyester Resin
• Fiberglass matting & strand
• Modeling clay
• Release agents
• Epoxy or Acrylic resins to coat polystyrene

Choices: To Cast stone molds. How Critical Quality Molds Are.

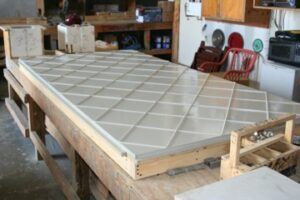

a, He could make a simple frame mold from wood. This would then use the good face of the pouring tables as its main face that shows when complete.

b, A more complex wooden mold using water-resistant good face plywood and other mediums.

c, Refer the shop drawing to the foam machine shop. Here the cnc machines could cut the molds from expanded polystyrene. After cutting these pieces would return back to the mold shop for secondary assembly. Which could include a base or an encasing surround for strength, damage protection or demolding.

d, Any radius pieces, whether a profile, flat pieces or more complex radius pieces. They would all go through both the mold CNC shop. Then back to the manual hotwire cutting area. Here a special machine with a custom shaped piece of NC flat wire, precisely shaped to copy any profile. This was used on a adjustable arm set to the required radius. A lot of these shaped wires came from stock in a locked storage area.

e, Send the drawing to the model shop for its process and the use of RTV rubber, Silicone Rubber, Fiberglass. And sometimes casting plaster or a combination of the mediums available. Then the model shop might have to send it back to the workshop area for completion.

Tracking The Cast Stone Molds.

In every mold making scenario, the team completes the mold, scans it, and moves it to production

Mold making is a critical part of creating high-quality cast stone pieces. Finding out about how to discern which suppliers will best meet your demands for the materials list. Such as silicone, RTV’s, molding plaster and fiberglass. These materials must be of good quality to capture the detail and complexity of your designs.

Cast Stone Molds: Step 3. Materials and Supplier Evaluation.

Excellence in mold making results from making the right choice of medium. Using both great materials and possessing the requisite expertise to make any cast stone creation. A substandard mold can waste even the finest mix, leading to defects and increased costs. And most importantly major delays in production of the overall project. Make sure to request samples or test results. Confirming properties like tensile strength, elongation, and tear resistance of major elements. Because there are certain countries marketing sub-standard products, so this data is vital for the durability and repeatability of molds.

Evaluating supplier flexibility is also essential, especially if you’re working on custom projects. A supplier worth their salt should be willing to collaborate on unique specifications. Moreover, look for those who can scale their supplies in response to your production needs. Without sacrificing quality or causing delays.

After locking down trustworthy suppliers of molding materials. You’ll want to zero in on documentation they provide. The ability to trace materials back to their source. And to have the appropriate MSDS to hand, (material safety data sheet) is not just reassuring. It’s a mark of professionalism that contributes to your own credibility and safety measures at your location. These details might seem small, but they are significant in maintaining a high-quality, reliable production line.

Cast Stone Molds: Step 4

When you’re confident in your material suppliers, you’ll naturally transition to planning for the final stages of your product’s journey. From your workshop to the client.

Which includes effective storage solutions and maintaining the integrity of the cast stone pieces before shipping. And along with choosing the right logistics partners. That’s what we’re going to tackle next.

---

Cast Stone Molds: Step 4A,

“The Unseen Hero: My Father-in-Law’s Impact on My Journey”

Often overlooked, holds the key to unlocking meaning. Without it, all other information becomes noise. Let me take you back to my mold shop. A place where creativity melds with craftsmanship, and every piece carries a story.

In the manufacturing process, each role plays a vital part in delivering the final masterpiece to our customers. But beyond titles and job descriptions lies the heart of success: a team of multi-talented individuals who think beyond conventions. They are the unsung heroes—the ones who transform raw materials into artistry.

The Skill Set.

My daily challenges echoed from the mold shop floor. The staff marvelled at my seemingly innate ability to assess any piece, instantly deciphering the best approach. But here’s the untold truth: during those critical years of growth, I had an extraordinary ally—my father-in-law. An unassuming bench carpenter, and more, he possessed a mastery of wood that transcended mere skill. His hands breathed life into furniture, shaping it from the ordinary to the extraordinary.

Yet, his impact extended beyond the workshop. He stepped into the CNC department, overseeing the entire mold shop. His wisdom, like fine-grained oak, infused every decision. And as a father-in-law, he became more—a confidant, a friend, a brother. Our shared passion for work bound us, and we wove memories into the very molds that shaped our legacy. Sadly he has now passed. But my respect for for him only grows stronger as I recant the stories on these web posts.

Today, some of those pieces endure, etching their mark on buildings and beautiful works of art. My father-in-law’s name remains unspoken at this point, yet it resonates in every curve, every detail. Perhaps, as we delve deeper into the intricacies of mold making, his story will emerge. A testament to the talent, love, and quiet strength that shapes our lives.

In the intricate dance of life, some steps remain hidden, yet they set the rhythm for everything else.

I sincerely hope that you can find such a person should you decide to be involved in this industry.

 Cast Stone MoldsStep 5.

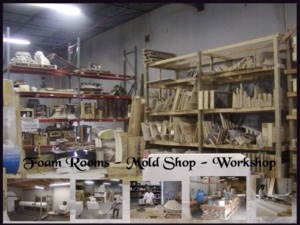

A list of equipment and tools needed in the mold shop to allow this to run smoothly

Workshop Basic Requirements for Cast Stone molds & How Critical Quality Molds Are Made.

• A good quality table saw, preferable a panel saw.
• A 12” minimum compound miter saw set in an appropriate bench.
• Work tables with plywood or similar tops, as long as possible for using a large radius arm jig.
• Dust extraction system.
• CNC foam cutting machine(s)
• Computer workstation and the minimum Hardware to draw and run the the CNC machine(s). I have always used Corel Draw and sometimes Auto Cad.
• A radius foam cutting machine.
• Storage rack for flat sock materials.
• Drill press.
• A large capability handmade lath for shaping bigger foam pieces, quickly.
• Tool storage cabinets.
• Enough small hand tools per the No of projected workers.

How the items are used will be explained in a later post. And create a basic material list and their uses. A well-kitted-out workshop is what you need for quality cast stone creations.

We hope you find the information useful, but if you have any questions or need help, send us a message. You do have to sign in and confirm these days to comply with government rules. Sorry for the inconvenience.

Author Rob & a little AI
