How To Use A Polystyrene Hot Wire Cutter.

We understand the intricacies of how to use a polystyrene hot wire cutter machine all to well. We owned one since their early appearance in the US marketplace. It’s a tool designed to cut polystyrene foam and similar materials precisely. It uses a heated wire to slice through foam, creating smooth edges and intricate shapes, guided by the user’s design.

I/We promote transparency. This post or site may contain affiliate links. This means only if you make a purchase through these links, not just by clicking, I/we may earn a small commission at no extra cost to you.

As an Amazon Associate, I earn from qualifying purchases

First To Buy And Learn How To Use a Polystyrene Hot Wire Cutter

We were one of the very first to introduce one of these machines into the wet cast stone industry in South Florida. We went searching for something that could help us achieve consistent quality in the basic molds, so the alignment was no longer an issue between adjacent pieces.

Please remember Google was just starting out when we were researching this, so it was phone, Yellow Pages, fax and email basics.

We found what we thought was the right place to go, in Atlanta so the wife and I turned it into a Busman’s holiday! One day looking at complicated high-tech (then) machinery, the next in some small rental boat in a huge swamp with gators everywhere.

Major Turning Point In Our Quality.

But my, did it turn out to be one of the best things we ever did? We ended up with 6. so getting it right the first time was so important.

So, how do you use a polystyrene hot wire cutter? Imagine a tensioned wire, made of materials like nichrome, ( NiCr ) or TitaniumWire. And when it’s heated electronically, it effortlessly cuts through by melting its way into the foam.

The heat and speed are adjustable. This allows for control over the speed and heat that is compatible with the density of the material. But also depending on the detail of the piece being worked on.

What Are The Uses Of A Hot Wire Cutter?

You might be wondering about the practical applications of such a tool. They’re very varied. Architectural modelling, creating prototypes, cutting different thicknesses of insulation, and turning pieces (forms) for builders or shell contractors.

Others include designing props for theater and film to crafting intricate artwork and sign-making. The use of large quantities of profiles for stucco/plastering contractors was a big income stream too. And that’s just scratching the surface.

Something Not To Do

Its hard to make this same mistake in today’s market. Company’s reviews on their products are critical to their survival. Whenever we buy something we are reminded of the need to review the product. But back in the early 2000’s this mentality had yet to be born.

Don’t do what we did and waste a ton of money on a machine that was not suited for this industry. When we tried to take consistency one step further and bought a MULTICAM CNC router for over $120,000. The intent was for this machine to bring the same quality to all of the required standard radius mold work. Flat radius pieces. took up so much time manually.

What a waste of time and money this was. The machine kept breaking down due to static electricity issues. And its inability to deal with the milled waste, which clogged everything up, even with the extraction system in place.

Negative Customer Service.

The sales rep and the company’s customer service made all sorts of claims and promises but it never worked for very long. It was not fit for purpose, the job and customer service was totally inadequate.

We had not figured in the complexity of the 3D software, and the costs involved in finding staff with suitable skills to run it. And finally, even with the company’s promises of a great resale market, I ended up getting rid of it for about 10% of what I paid for it.

New Class of Machines.

There are now great machines out there for this task. But the software learning curve still exists, I am told it’s not as bad as it was though. The point here is to hold any company to their claims. And get it in writing. Watch any demos of the machine doing what it says it does and with the right product.

As we talk about these cutting-edge tools, based on expertise, and authoritativeness. We hope to bring forth the latest in technological developments, practical advice, and the nuances of the machine operations—all framed with a consideration for what is most helpful to you.

Types, Sizes, And Necessary Skills For How To Use A Polystyrene Hot Wire Cutter

Polystyrene hot wire cutter machines come in various shapes and sizes, each tailored to specific tasks. From handheld tools to large industrial machines, the spectrum of choices can be overwhelming.

In this section, we will help you break down the options and match the right machine to your project’s needs. It’s important to note that larger machines generally offer more flexibility by being able to cut more than one block at a time. But they also require more space and a lot bigger investment.

Thank goodness I had my father-in-law, Brian beside me at this stage in our growth. He eventually took over all of this responsibility for me in the design and operating department. This allowed me to continue developing the software program for the operation of the whole show. He made these machines do more than the manufacturers had ever thought of at that time with his creative workshop jigs.

Buy CNC Cutter

When selecting a machine, first, consider the thickness and density of foam you intend to cut. Most blocks of foam that I have purchased in the past have been 2.4 x 1.2 x 1.05 (8′ x 4′ x 3′ 6″) but the sizes do vary depending on the supplier. And normally the smaller the block the more per cubic foot you will pay.

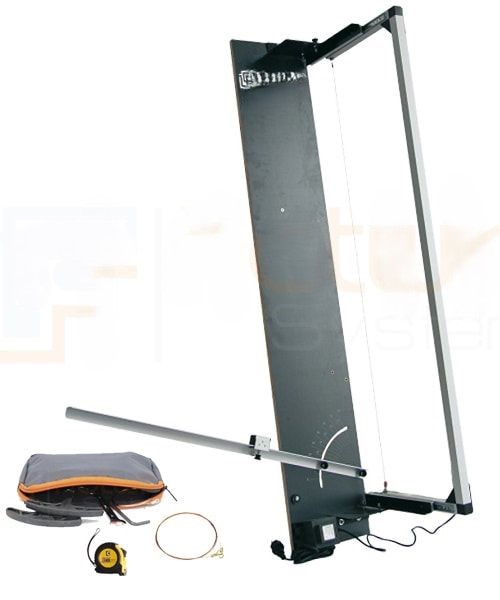

 Handheld machines are ideal for artists and hobbyists working on smaller scales. These are typically more affordable and easier to manage but even commercial operations have their uses for these too.

For industrial purposes, consider a larger, stationary machine that can handle heavy-duty cutting, (meaning long periods of operation), tasks with ease. The size of your workspace will also play a major role in your decision. The larger machines require a dedicated area, not just for the machine but so you can safely load the machine. And you should always have plenty of dry storage space for a large amount of additional blocks.

How To Use A Polystyrene Hot Wire Cutter

Operating a hot wire foam cutter requires a blend of technical knowledge of the computer and apps. And the creative skills of a good finish carpenter. While these machines are not overly complicated in themselves, familiarity with basic electrical safety and tool handling is essential.

Many machines on the market today can work with just a simple wired remote, But they require the drawing files to be prepared separately in .PLT or .DXF format for the machine to work. Then transferred to the machine on a memory card or stick. It’s best to have a localised computer workstation either a PC or laptop if you have the space available, and networked if you are considering a larger operation.

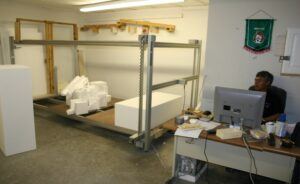

Work Station And Network Access

With a local workstation you have control over the drawing and operation of the machine and can stop the operation should something not be right. If working hand-held or manually operated cutters then a dexterous hand figures prominently in achieving clean operation.

Self-training

If you’re new to foam cutting, it’s a practical idea to start with some very simple designs and work your way up as your confidence grows. Most manufacturers provide sample drawings and detailed instructions of how to handle the controls and software for their machines.

I recommend you study them in detail before you begin and if there is normally an option to run simulations you will find them very beneficial.

Software Skills Required.

I evolved with Corel Draw and then introduced the app to the company as my main program of choice for design. As I was introduced to it several years before, I was confident my staff could become proficient with this program in a shorter period than say, CAD.

Depending on your intended use of these machines, you may also need to become competent in “nesting“, a term used where you have to incorporate as many pieces in to your block of foam to minimise waste and maximise pieces that are cut.

Machine And Its Software Learning Curve.

The biggest learning point we went through at this stage was not being able to understand that whatever shape/profile you were drawing was fully connected with all of its outlines as one shape. Otherwise the CNC machine’s cutting software will make its own determination and will shoot off on its pathway. This normally ruins your mold but also an expensive block of foam too.

Setting Up Your Machine

Beyond the cutter itself, being set up in a very level and square configuration, some machines don’t come with a usable working bed. And if you have many smaller pieces to cut, it can make things just a little more challenging.

We recommend that you build one that works for your machine, in a way that does not affect the operation, no matter what configuration you intend to use it in.

This adaptation is particularly important not just for cutting smaller pieces, but also if you intend to add a 3rd axis. This means you can expand your ability to use a turntable or lathe operation, enhancing your portfolio of pieces you can produce. At the same time expanding your cutting experience.

How To Use A Polystyrene Hot Wire Cutter With A Tapering Option

Another key advancement with today’s machines is the ability to cut tapered pieces. This is a very useful function and one worth exploring before you buy. In layman’s terms, it just means that one end of the wire is moving differently from the other end. It is as simple as setting one more configuration before you cut.

It sounds very simple when I say it that way, but in reality, it’s a more complex process to make the machine complete the task. It’s not just the software, it is some of the mechanical parts of the machine allowing the wire to shrink and contract without ruining the quality of the cut, But also allows the independent movement of the stepping motors and their rails.

Hand-Held Tools

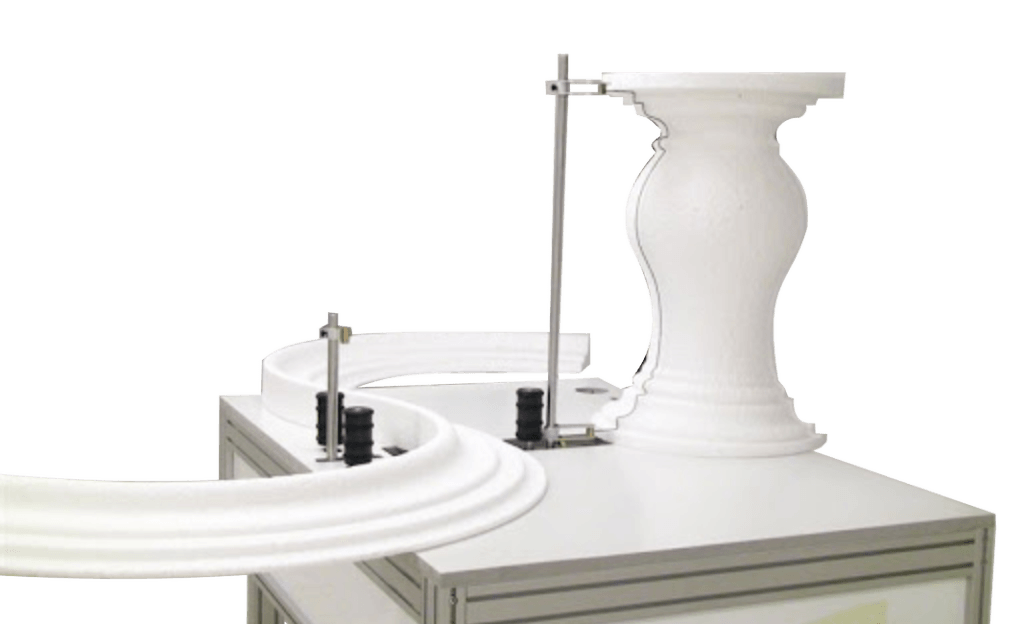

Basic hand-held tools, which you do need for model prototyping and free-forming are needed. Some form of at least a flat radius cutter that is adaptable for your intended uses. This could be the maximum profile size and the radius of the pieces you expect to cut. Without a tool for this, you will be lost in the production process of any arched piece.

Some small machines on the market today require you to build specialized cutting tables, guide rails, and foot pedals if you require a hands-free operation. These are just a few of the accessories that could improve precision and safety, but most I would steer away from if you need precision.

Software Requirements

As for software, programs that allow for design and layout planning and that are compatible with the machine’s computer numerical control (CNC) software for automated cutting. Apps like Corel Draw work with most machines on the market today.

I am still using my Corel 16 version, so you don’t need to go for the latest and greatest version until you know how to use it or if you require other parts of the suite. The latest upgrades don’t really target the needs used in this application So look to do an outright program purchase for this sort of application.

Corel’s DXF file output gives you the accuracy that is best suited. Adobe Illustrator and AutoCAD programs work well and are commonly used for high-level drawing. However, they have a steep learning curve, so I don’t recommend them for this task unless you are already familiar with them. Corel’s DXF file output provides the best accuracy

They can all do the task of translating designs into cutting paths for the machine to follow. But if you are new to the process you do need to allow yourself plenty of time to learn these processes.

Each Machine has its own custom software that takes the prepared drawings and converts them into plotting file, similar to other types of printable actions. But there is a learning curve with every machine,

Next, I will inform you of the materials these versatile machines can work with and spotlight the premium choice for precast mold making. Remember, choosing the right material isn’t just about what you can cut; it’s about achieving the desired finish and durability for your project.

Materials, Molding, and Mastering Hot Wire Foam Cutting

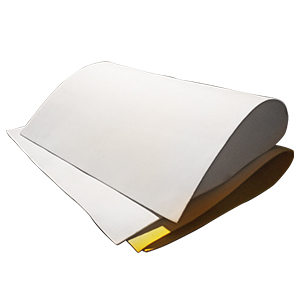

I’ll now guide you through the varied world of materials that you can cut with a hot wire foam cutter, zeroing in on the specifics for those in the mold-making scene. When considering your options, remember that not all foams are created equal. The most common types you’ll encounter include;

• polyurethane foam – PU

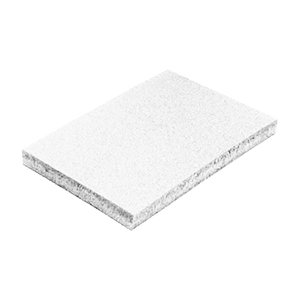

• polypropylene foam – PP

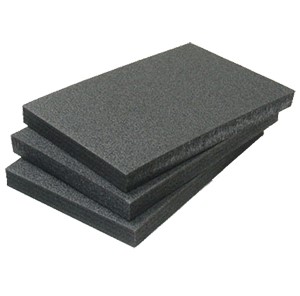

• polyethylene foam – PE
• mineral wool, rock wool, but also EPS, XPS, EPP, foamed glass, etc.

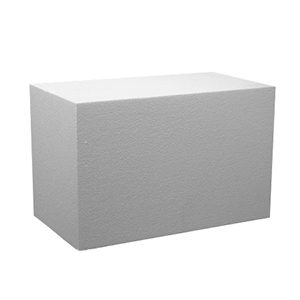

For those with a keen interest in precast mold making, EPS (Expanded Polystyrene) foam comes highly recommended.Most wet cast stone manufacturers normally choose this type of mold-making option.

Its uniform structure and density make it an excellent candidate. It carves cleanly, ensuring crisp details and a smooth finish that are crucial for professional-looking molds and finished pieces. The foam we used 99% of the time was 1.35 to 1.80 pounds per cubic foot (21.6 to 28.8 kg/m³). This is either Type II or Type IX EPS according to ASTM C578.

We occasionally chose denser foam for special projects that required more strength in the mold integrity. When using it for standard profile mold, we had issues with curling. And most importantly it must be VIRGIN foam.

Why because if the block you were cutting contained a recycled product it would at the very least damage the surface of the mold you would be pouring against, and at worst, leave you with a useless block of foam and useless mold.

How To Use A Polystyrene Hot Wire Cutter

Mastering how to use a hot wire cutter is more than about understanding the machine. It’s about learning the software for precision in your designs, practice, and patience. Start with simpler designs and gradually move to more complex patterns and using the 3rd axis.

And then learning “nesting” as your confidence and skills grow. Regularly cleaning the wire and ensuring proper tension if your machine does not have automatic tensioning. This is a task that can have a significant impact on your cutting accuracy. Because my father-in-law was a great craftsman, he adapted better than everyone and enjoyed it.

General Maintenance.

In terms of maintenance, your hot wire foam cutter is no different from any other tool in your workshop. Simple habits such as keeping the cutting wire clean, and checking for wear and tear on drive belts and bearings. And we found it best to blow out the rails with the compressed air. Watching out for any static build up is another concern.

But ensure you do this carefully, keeping the workspace free from unnecessary debris. This will also help to keep your machine running smoothly for years to come.

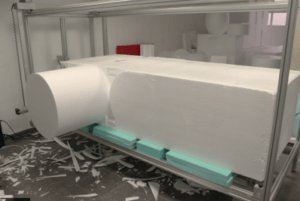

An important point to address early is what happens to the polystyrene waste. No matter what foam you use, it will accumulate. There are many more recycling machines available today. I would strongly recommend that you look at one early in your operation.

If your budget can stretch for it as it does very soon pile up and its not like waste from a woodworking shop. There are now more uses for recycled foam so it should help towards the costs and be environmentally friendly.

How To Use A Polystyrene Hot Wire Cutter & User Experience

Finally, let’s acknowledge the heart of the matter, the user experience. Whether you’re a seasoned professional or a hobbyist just starting out, understanding and utilizing your hot wire foam cutters and other tools should be straightforward. Manufacturers should provide clear instructions, tutorials, and customer support to make the tool accessible to all skill levels. Typically, new machines come with some or all of the following.Touch Screen, Shaper software, Windows Software, Remote Control

.

We hope you find the information useful, but if you have any questions or need help, send us a message. You do have to sign in and confirm these days to comply with government rules. Sorry for the inconvenience.

Author Rob
